  • Chevrolet CR9 X14Y Crankshaft - 1.4 Utility Corsa

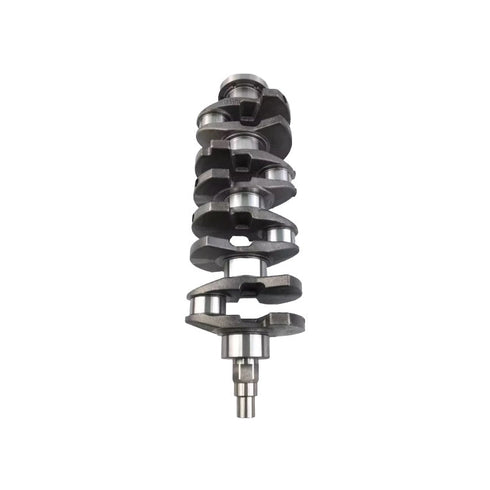

Chevrolet CR9 X14Y Crankshaft - 1.4 Utility Corsa
Chevrolet CR9 X14Y Crankshaft - 1.4 Utility Corsa
Chevrolet CR9 X14Y Crankshaft - 1.4 Utility Corsa
Chevrolet CR9 X14Y Crankshaft - 1.4 Utility Corsa
Zoom
New

Chevrolet CR9 X14Y Crankshaft - 1.4 Utility Corsa

SKU: CrkSft-CR9/X14Y

Availability: In Stock

Product type: Crankshafts

R2,400.00

Tax included ZAR only - Price subject to availability Shipping calculated at checkout.
Request a Quote
Add To Saved List Added To Saved List
WARRANTY
SHIPPING
FAQ
Ordering
Order in the next 0 hours 0 minutes to get it by         /10/2026

Estimate Shipping

Enter your destination to get a shipping quote estimate. Shipping quote is for all items in your basket.

Calculate shipping

Split your purchase with interest-free payments from R 400.00/m

Make your first payment today, then monthly over 2–6 months.

PRODUCT INFORMATION
Technical Data & Specifications
Makes & Models
Product FAQ
PRODUCT INFORMATION

Chevrolet 1.4 X14Y CR9 Suitable Crankshaft

Product For Sale - Information & Options

  • Crankshaft - standard - does not include, where applicable, any actuators, bearings, bolts, gears, keys, locator pins, oil drives (attachable), pulleys, pinion bearing, seals, sensor plates or sprockets.

Specifications

  • Main journal ⌀: 55mm
  • Con rod journal ⌀: 43mm
  • Rear seal ⌀: 80mm
  • Front seal ⌀: 26mm
  • Stroke: 73.4mm
  • Pulley end hex widest: 29.5mm
  • Pulley end thickness: 26.5mm
  • Flywheel holes: 6 and 1 locator pin
  • Overall length: 442mm

Vehicle Models
Chevrolet

  • Utility

Opel

  • Corsa
  • Corsa Utility
  • Kadett

Part Numbers

  • OEM Number/s: 94700102, 94700106, 90466352
  • Cross Reference/s: ###
  • Other Code/s: ###

Images are for illustration purposes only. All trademarks are the property of their respective owners.
