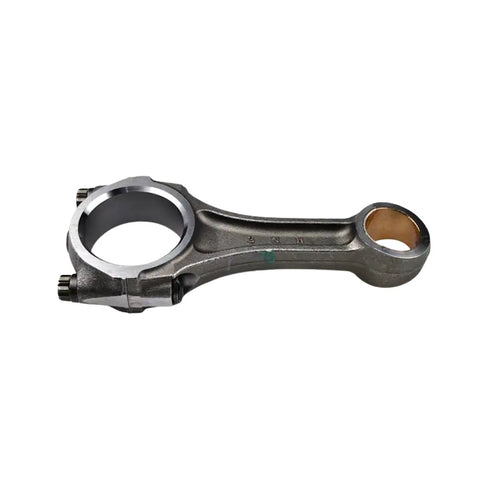

Nissan ZD30 Con Rods - Hardbody Terrano

SKU: CntgRd-QD32/ZD30-1Pc

Availability: Out of Stock

Product type: Connecting Rod

Make A Selection

R710.00

Tax included ZAR only - Price subject to availability Shipping calculated at checkout.
Request a Quote
Add To Saved List Added To Saved List
WARRANTY
SHIPPING
FAQ
Ordering
Order in the next 0 hours 0 minutes to get it by         /10/2026

Estimate Shipping

Enter your destination to get a shipping quote estimate. Shipping quote is for all items in your basket.

Calculate shipping

Split your purchase with interest-free payments from R 118.33/m

Make your first payment today, then monthly over 2–6 months.

PRODUCT INFORMATION
Technical Data & Specifications
Makes & Models
Product FAQ
PRODUCT INFORMATION

Nissan ZD30 Suitable Connecting Rod

Product For Sale - Information & Options

  • Connecting Rod

Specifications

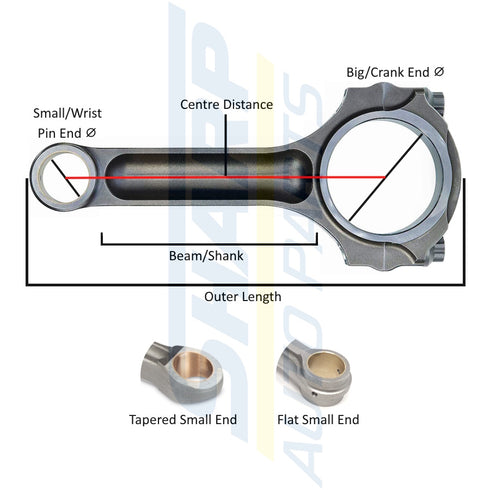

Refer to reference diagram labels

  • Outer length: 223mm
  • Beam length: ###mm
  • Big end ⌀: 58mm
  • Small end ⌀: 35mm & tapered
  • Center distance: 162.5mm

Vehicle Models
Nissan

  • Hardbody
  • Navara
  • Terrano

Part Numbers

  • OEM Number: 12100-2W20A, 12100-1W401, 12100-2DB0A
  • Cross Reference: ###
  • Other Codes: ###

Engine Information

  • Code - ZD30
  • Displacement Capacity - 3.0l - 2953cc
  • Fuel Type - Diesel
  • Valve Train Operation - Double OHC; 16 Lifters And Shims
  • Valves - 16 - 4 Per Cylinder
  • Cylinders - 4 Inline
  • Bore ⌀ - 96 mm
  • Stroke - 102
